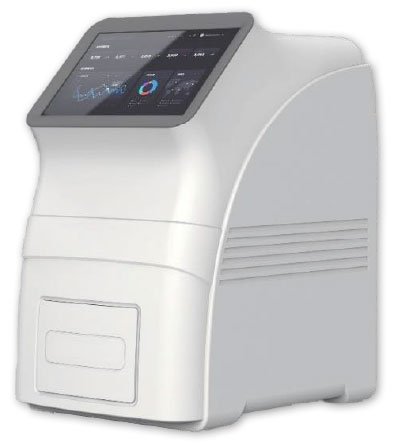

DCH-IV Fast Test PCR system comes with a customized centrifugal microfluidic chip, which is widely used in hospitals, medical clinics and field medical rescue.
10 seconds centrifugation
Insert Sample (20μl/12 loci) Single test up to 48 loci
Generate report within 60 minutes
The Clair iCloud analysis and the reporting database system paired with customized report and clinical recommendation will be provided;
PGx module, Guide module,
genotype etc. analysis database
Remote monitor the instrument
condition and track the testing progress
through LAN or specialized WeChat app
| Instrument name | Fast Test PCR system |
| Model | DCH-IV |
| Sample volume | 20μl/12 loci |
| Detect ion channels | FAM, HEX |
| Light Source | LED, the service life is more than 2500 hours |
| Temperature stabilization | Independent temperature contro |
| Maximum heating rate | 5℃/s |
| Maximum cooling rate | 4℃/s |
| Temperature accuracy | No more than 0.5 ℃ |
| Temperature uniformity | Temperature difference within ±1 ℃ |
| Temperature range | Room temperature ±5 ℃ to 110℃ |
| Data communication interface | 3 USB ports, 1 network port, wireless connection |
| System conguration | Microsoft Windows operating system |
| Instrument size (LxWxH) | 360mm×290mm×460mm |
| Net weight | 10kg |
| Testing Duration | 60 minutes |
| Power Supply | 220V |
| Test Item | Drug Type | Drug Name | Testing Gene | Testing Loci |
|---|---|---|---|---|
| Safety of medicine use for children | Antipyretic Analgesic |
Ibuprofen Paracetamol Diclofenac |
CYP2C9 | *2 |
| CYP2C9 | *3 | |||
| TNFRSF11A | c.575C>T | |||
| PLA2G4A | c.115+9538A>G | |||
| PTGS2 | c.-899G>C | |||
| Bronchodilator | Salbutamol Budesonide Fluticasone |
ADRB2 | c.46A>G | |
| GLCCI1 | c.-1106G>A | |||
| CRHR1 | c.1194+111C>T | |||
| Proton Pump Inhibitor |
Rabeprazole Lansoprazole Pantoprazole Omeprazole Esomeprazole |
CYP2C19 | c.681G>A(*2) | |
| c.636G>A(*3) | ||||
| c.-806C>T(*17) | ||||
| Leukotriene Receptor Antagonists |
Montelukast | ABCC1 | c.49-14840C>T | |
| ALOX5 | c.432-6550A>G | |||
| Hormone | Glucocorticoids | ABCB1 | c.3435T>C | |
| SERPINE1 | c.-820_-817G(4_5) |
| Test Items | Product Code | Gene Test | Testing Loci | Package Specifications | |
|---|---|---|---|---|---|
| Aspirin 6 | AASPL | 6 | ITGB3 | c.176T>C | 90T/Kit,180T/Kit |
| LTC4S | c.-444A>C | ||||
| PTGS1 | c.-842A>G | ||||
| GP1BA | c.482C>T | ||||
| GSTP1 | c.313A>G | ||||
| PEAR1 | c.-9-3996G>A | ||||
| Aspirin 3 | BASPL | 3 | LTC4S | c.-444A>C | 90T/Kit,180T/Kit |
| GSTP1 | c.313A>G | ||||
| PEAR1 | c.-9-3996G>A | ||||
| Clopidogrel 6 | BLBGL | 4 | CYP2C19 | c.681G>A | 90T/Kit,180T/Kit |
| CYP2C19 | c.636G>A | ||||
| CYP2C19 | c.-806C>T | ||||
| PON1 | c.575A>G | ||||
| ABCB1 | c.3435T>C | ||||
| CES1 | c.428G>A | ||||
| Statins 6 | ATTL | 4 | ABCB1 | c.2677T>G | 90T/Kit,180T/Kit |
| KIF6 | c.2155T>C | ||||
| ABCB1 | c.3435T>C | ||||
| APOE | c.526C>T | ||||
| SLCO1B1 | c.521T>C | ||||
| ABCB1 | c.2677T>A | ||||
| Statins 3 | BTTL | 2 | ABCB1 | c.2677T>G | 90T/Kit,180T/Kit |
| SLCO1B1 | c.521T>C | ||||
| ABCB1 | c.2677T>A | ||||
| Folic acid 3 | AYS | 2 | MTHFR | c.665C>T | 90T/Kit,180T/Kit |
| MTHFR | c.1286A>C | ||||
| MTRR | c.66A>G | ||||
| Folic acid 1 | BYS | 1 | MTHFR | c.665C>T | 90T/Kit,180T/Kit |
| Warfarin 5 | AHFL | 3 | VKORC1 | c.174-136C>T | 90T/Kit,180T/Kit |
| VKORC1 | c.-1639G>A | ||||
| CYP2C9 | c.1075A>C | ||||
| CYP2C9 | c.430C>T | ||||
| CYP4F2 | c.1297G>A | ||||
| Warfarin 3 | BHFL | 3 | VKORC1 | c.-1639G>A | 90T/Kit,180T/Kit |
| CYP2C9 | c.1075A>C | ||||
| CYP2C9 | c.430C>T | ||||
| Shipping Cost | Shipping Included |
| Shipping Time | Ready to ship in 8-15 Business Days |
